HV-KIT-B, HANDI-VAC™ Squeeze Bulb Kit With 4 Probes And 4 Buna-N Static Dissipative Non-Marking Vacuum Cups - SEE VIDEO

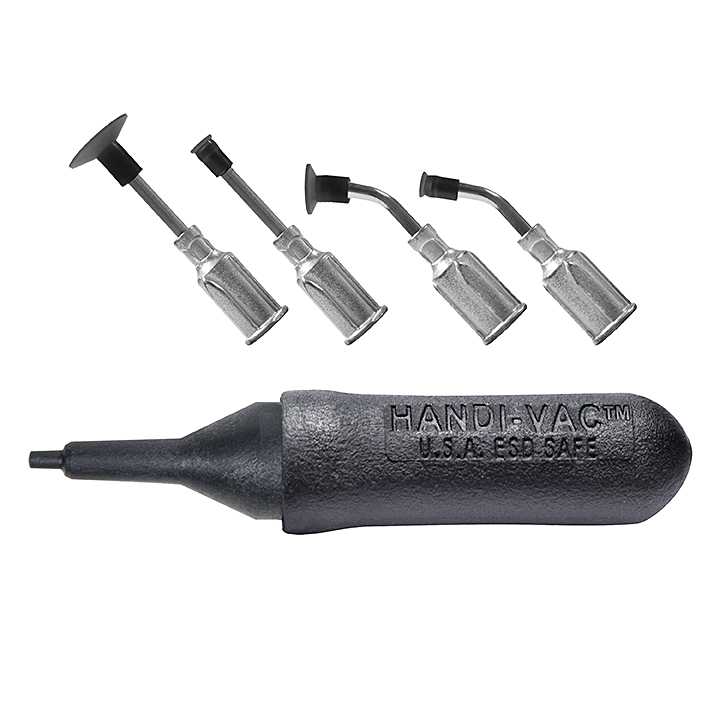

HANDI-VAC™ KIT, Static dissipative Buna-N vacuum cups. (1) 1/8″ (3.18mm) and (1) 1/4″ (6.35mm) vacuum cups on bent probes and (1) 1/8″ (3.18mm) and (1) 3/8″ (9.53mm) vacuum cups on straight probes.
Our HANDI-VAC™ kits are a low cost pick-and-place tool that can go in everybody’s tool box. These tools are simple to operate:
1. Select a tip with a rubber vacuum cup on a probe that is slightly smaller than the part you want to pick and place. Put the probe snuggly on the tip of the HANDI-VAC™ tool. Make sure that there is no dust on the rubber vacuum tip. NOTE: Our larger rubber vacuum cups can be placed directly on the HANDI-VAC™ tip without using a probe.
2. Gently squeeze the HANDI-VAC™ bulb, place the soft suction cup squarely on the pick-and place part, then relax your squeeze. The part is now firmly gripped.
3. Move the part to where you need it and a second squeeze of the bulb releases the part.
Applications for this tool include SMT parts, metal parts, plastic parts or any item having a smooth-nonporous-surface that the rubber VACUUM TWEEZER™ tip can seal against. This tool can be used with any of our rubber vacuum cups ranging in size from 3/32” (2.38mm) to 3/4” (19.05mm) in diameter. Use the larger cups to pick up larger and heavier parts. For better precision in part placement see our PEN-VAC™ or PEN-VAC™ PRO-Series self contained vacuum pens.
|12 × 12 × 12 in|
