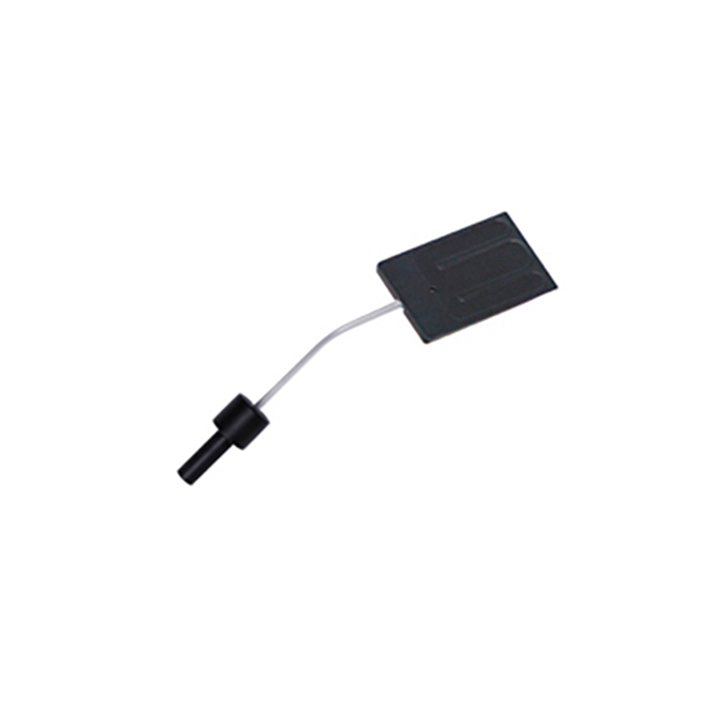

VHT-170110-PF10D, Hard-Coated Aluminum Tip 10° Down, For Up To 6 Inch Wafers, Solar Cells And Flat Panels
Recommended for handling up to 6” (150mm) wafers, 10 degrees down direction.
These Wafer Tips are Hard-Coated aluminum for high temperature applications up to 250°C. The wafer handling tips come complete with a 3” (76.20mm) long, straight, stainless steel 0.094” (2.39mm) diameter tube and fitting to connect to press-fit wafer handling tools.
To order longer tube lengths, up to 8” (203.20mm) long, and to specify an angle to be included on the tube, please contact us by phone: 1-800-530-8377 or email us at: firstname.lastname@example.org
|12 × 12 × 12 in|
