TV-1500A-ELITE-FS-110, 110 VOLT AC, TWEEZER-VAC™ ELITE AUTO-ON/OFF ESD-SAFE Kit With Foot Switch And Buna-N Static Dissipative Non-Marking Vacuum Cups With Probes

Description

TWEEZER-VAC™ ELITE AUTO-ON/OFF VACUUM TWEEZER™ Kits

A new series of TWEEZER-VAC™ kits has been added to our product line with an optional AUTO-ON/OFF feature – turn the power switch to the AUTO position, the unit will be off, when you pick up the VACUUM PEN from its holder, the blue LED vacuum level bar will glow to show power is on. The holder has a sensor to turn on and off the TWEEZER-VAC™ AUTO-ON/OFF, this feature helps user to be more productive, save energy, and extends life of the unit.

This TWEEZER-VAC™ uses an integrated ten segment bar-graph-display that visibly shows the vacuum level present during operation.  The bar graph will show minimum vacuum pressure until a part is grasped and then when a part is grasped the bar graph displays the vacuum level presented to the part being handled.  Additionally, the vacuum port integrates a user replaceable inlet filter that protects operation of the tool from dust particles.  This TWEEZER-VAC™ is available in various kits depending on your handling application.  Kits are available in 110 or 220 volt operation.

These ESD-SAFE kits feature:
• Five vacuum tip holders on top of tool.
• Bar graph power-on and vacuum-level indicator.
• Power switch has on, off and auto positions.
• Rubber no-skid feet.
• ESD ground connection is by three wire power cord.
• Produces vacuum up to ten inches of mercury.
• Long life pump.
• Side mounted handle holder with sensor.
• Replaceable inlet filter.
• Optional: Foot switch systems (FS models only).
• Dimensions 8” X 3” X 3.5” (203mm X 76mm X 89mm).
• Class 100 Cleanroom Safe.

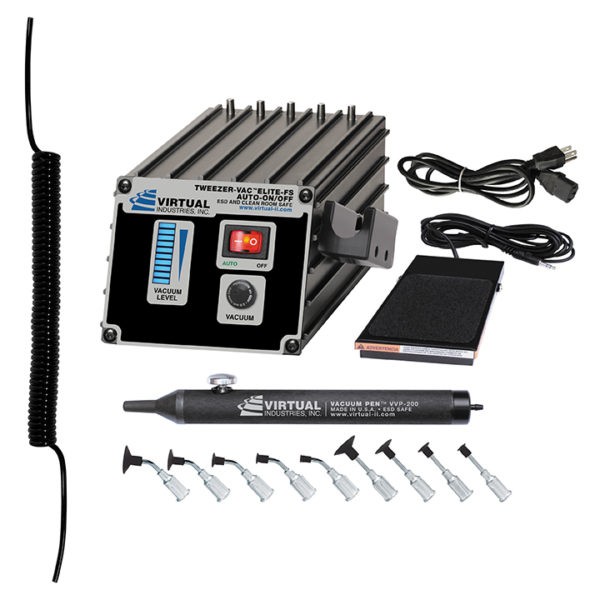

This Kit includes:
• ESD SAFE COILED PERMANENT STATIC DISSIPATIVE VACUUM HOSE 5’ (VCH-2.5mm-5)
• PUSH-BUTTON VACUUM PEN (VVP-200-2.5mm)
• FOOT SWITCH (VFS-X) WITH INTERNAL SOLENOID
• VACUUM-CUP-KIT-9 (VCS-9-B)
• 3 WIRE POWER CORD

Hose color may vary. Vacuum hoses are available in straight or coiled custom lengths, please contact Virtual Industries to order (719) 572-5566. There are no returns or refunds on custom lengths.
