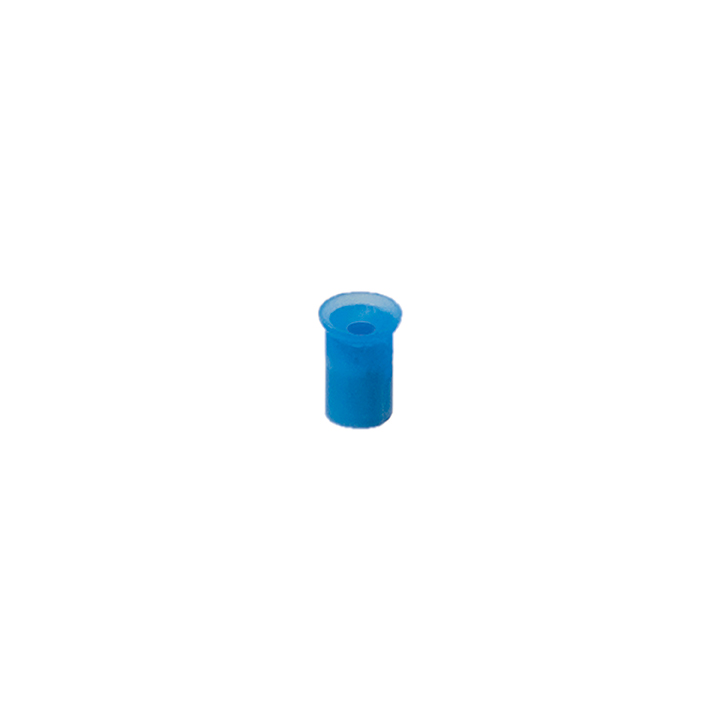

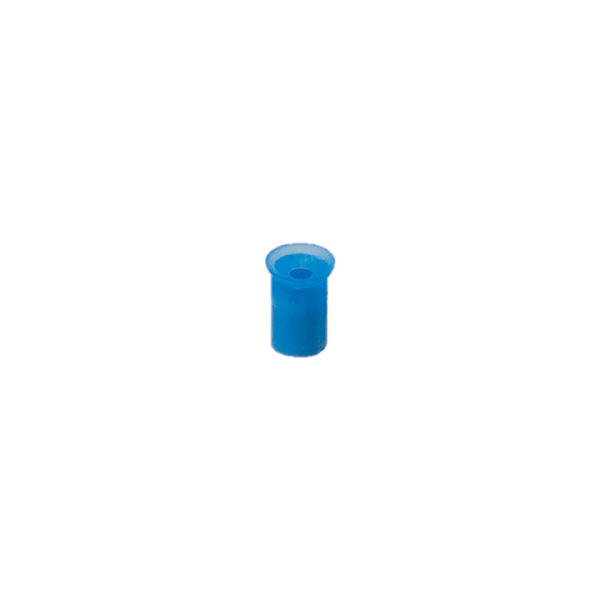

V9009-PUR, PureAClean™ Blue, Non-Marking, NON ESD SAFE 3/32 inch (2.38mm) Diameter Vacuum Cup
PureAClean™ blue, non-marking, NON ESD SAFE 3/32 inch (2.38mm) diameter vacuum cup. The vacuum cup material is PureAClean™, a catalytically cured silicone based rubber compound. This cup material is ideally suited for handling residue sensitive items such as lenses or optical filters.
Operating temperature limits (-65oF – 480oF) (-55oC – 250oC).
Electrical properties: Greater than 1013 Ohms.
Lifting capacity at 6 In Hg: 10 g (0.35 oz)
Lifting force is directly proportional to the vacuum level and the surface area of the vacuum cup being used.
