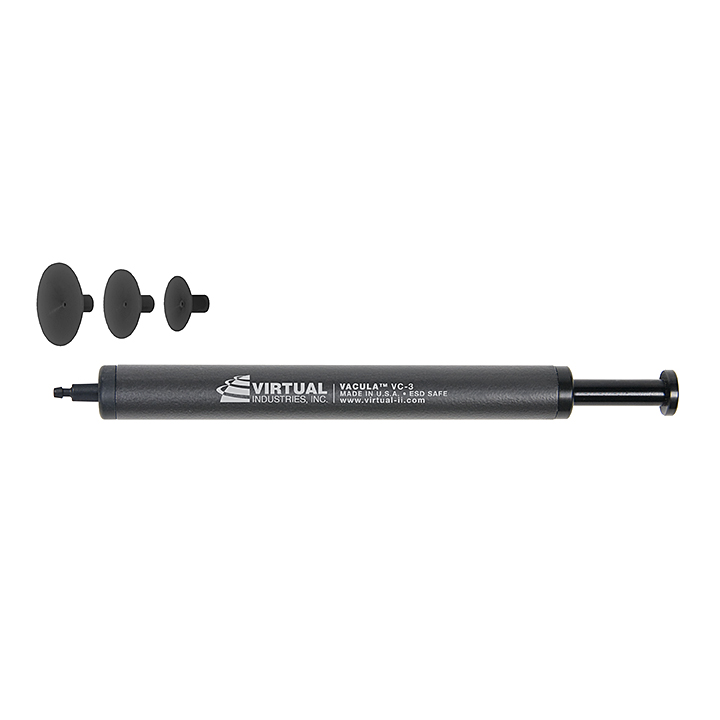

VC-3-ESD, VACULA™ 3 Kit With 3 High-Temp Conductive Silicone Black Vacuum Cups
Our most powerful ESD-Safe self contained VACUUM TWEEZER™ designed to handle parts when moving them into and out of burn-in trays, test sockets or other component transfer operations. The plunger in the rear of the tool activates the vacuum, simply push the vacuum plunger, place the soft suction cup to the part to be handled, then release the plunger and the part is firmly gripped. A second push of the plunger releases the part.
The VC-3-ESD, VACULA™ 3 is provided with three High-Temp Conductive Silicone Black Vacuum Cups, 1/2″ (12.7mm), 5/8″ (15.88mm) and 3/4″ (19.05) diameter, that slip onto a dual barbed fitting. The barbed fitting provides extra lifting power.
|12 × 12 × 12 in|
